Type 94-5 Translation

Translated by Tom Grandgent on 2/19/2010

Notes:

  1. Some characters (shown in red when possible) are obsolete and were simplified/changed after WWII.
  2. The right-hand columns show relevant entries from EDICT or other dictionaries (linked).  These entries can be ignored or used for additional insight.
  3. If you don't see two fairly similar looking hash mark symbols here - # 井 - then click here to view this page properly.

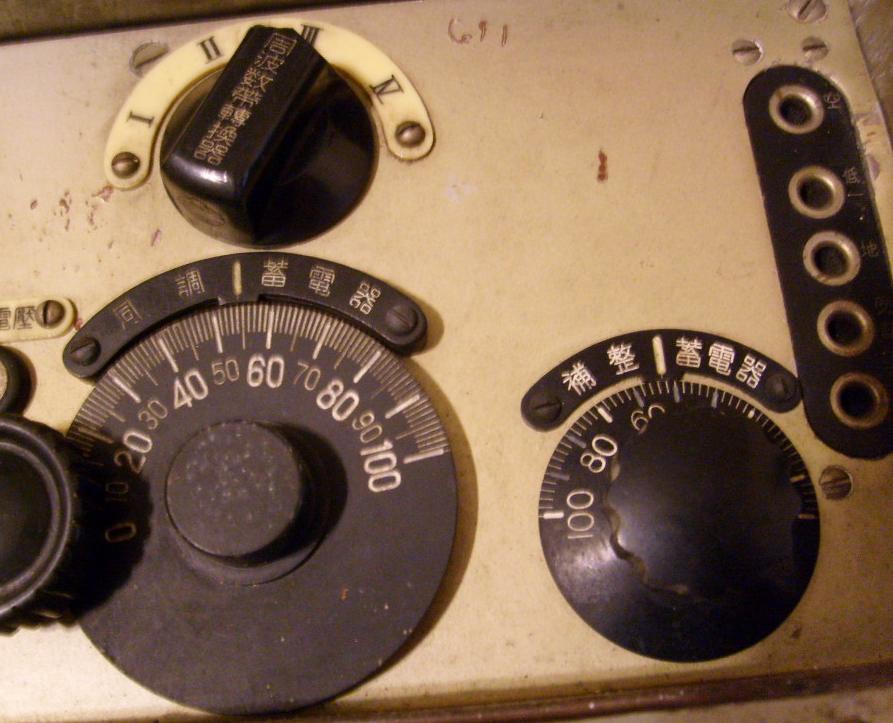

Top-left selector:

周波数帯轉換器 =
周波数帯転換器 = frequency band converter

 周波数 [しゅうはすう] (n) frequency (of waves), (P)
帯 [たい] (n-suf) band (e.g. conduction, valence), belt (e.g. Van-Allen, asteroid, etc.), (P)
転換 [てんかん] (n,vs,adj-no) convert, divert, (P)
器 [き] (suf) (1) device, instrument, (2) vessel, container
Bottom-left dial:

同調 = tuning
蓄電器 = condenser

 同調 [どうちょう] (n,vs) sympathy, agreement with, alignment, conformity, tuning, (P)
蓄電器 [ちくでんき] (n) (electric) condensor
Bottom-right dial:

補整 = adjust
蓄電器 = condenser

 補整 [ほせい] (n,vs) adjust (by supplementing)
蓄電器 [ちくでんき] (n) (electric) condensor

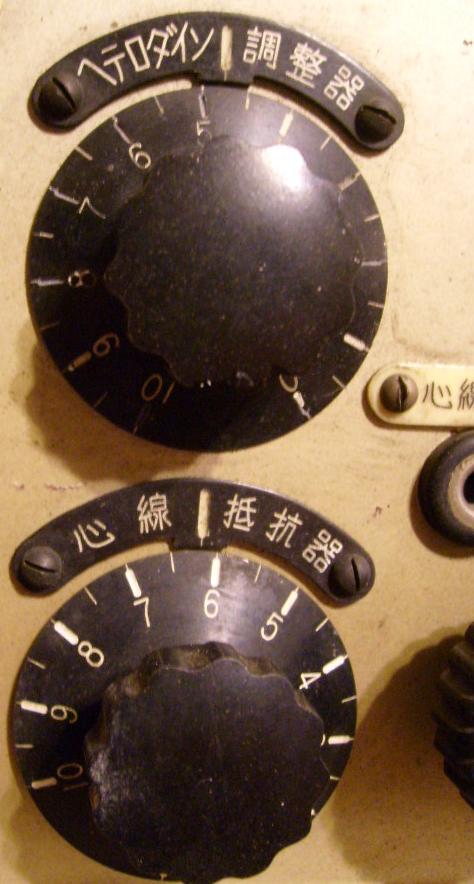

Top dial:

ヘテロダイン = heterodyne
調整器 = adjuster

 ヘテロダイン (n) heterodyne
調整 [ちょうせい] (n,vs) regulation, adjustment, tuning, modification, alteration, (P)
器 [き] (suf) (1) device, instrument, (2) vessel, container
Bottom dial:

心線 = line
抵抗器 = resistor

 心線 - the conducting wire inside an electric line, cord, cable, etc.
抵抗器 [ていこうき] (n) electrical resistor

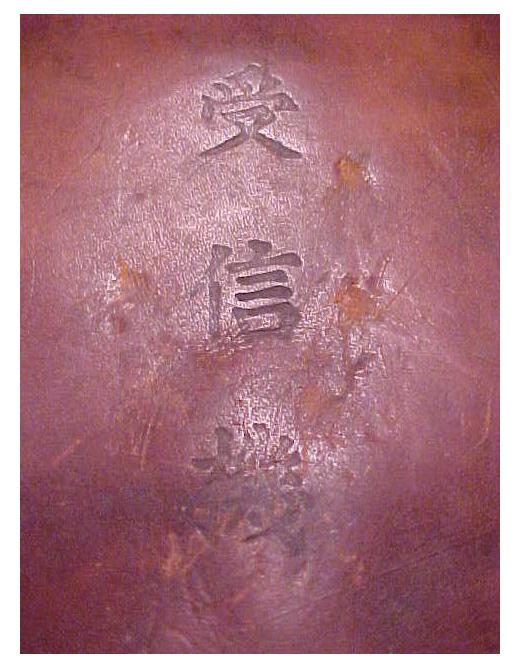

受信機 = receiver

 受信機 [じゅしんき] (n) (television, radio, etc.) receiver, (P)

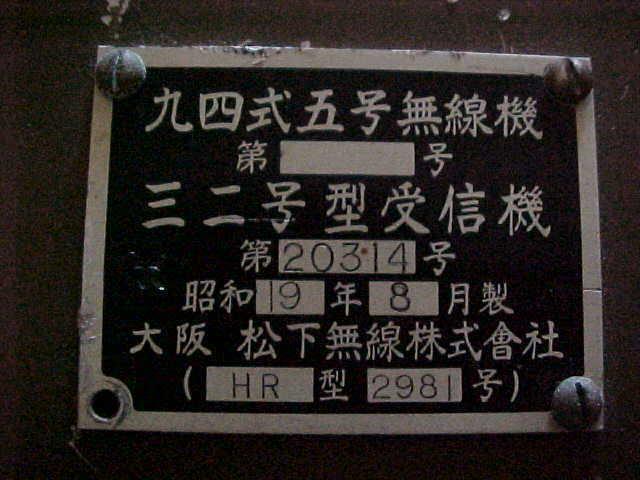

九四式五号 = Type 94-5
無線機 = wireless, radio, (possibly transceiver)

第, 号 = serial number

三二号型 = No. 32
受信機 = receiver

昭和19年8月製 = mfg. August 1944

大阪 = Osaka
松下無線 = Matsushita Wireless
株式会社 = (public company)

 無線機 [むせんき] (n) wireless, radio, transceiver
第 [だい] (n,pref) ordinal
号 [ごう] (n,n-suf) (1) number, edition, make, model, issue, part of that group, (P)
型 [かた] (n) (1) model, type (e.g. of machine, goods, etc.), (2) type, style, pattern, (P)

昭和 [しょうわ] (n) Showa era (1926.12.25-1989.1.7), (P) (date converter)
製 [せい] (n,n-suf) -made, make, (P)

大阪 [おおさか] (n) Osaka
松下 [まつした] Matsushita (p,s)
無線 [むせん] (n,adj-no) wireless, radio, (P)
株式会社 [かぶしきがいしゃ] (n) public company, corporation, KK,
formula for an incorporated public company, (P)

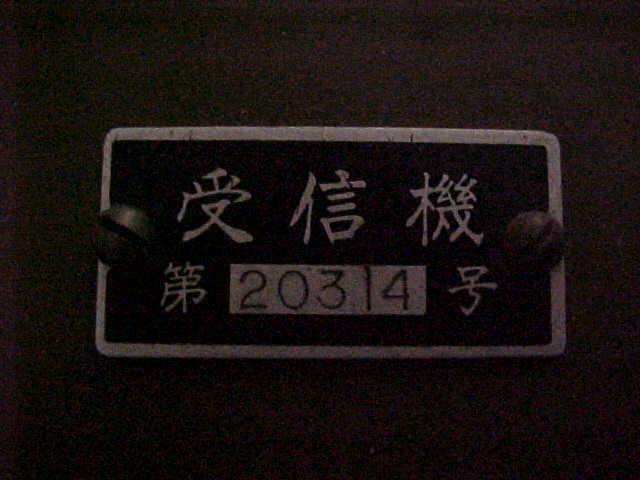

受信機 = receiver
第, 号 = serial number

 受信機 [じゅしんき] (n) (television, radio, etc.) receiver, (P)
第 [だい] (n,pref) ordinal
号 [ごう] (n,n-suf) (1) number, edition, make, model, issue, part of that group, (P)

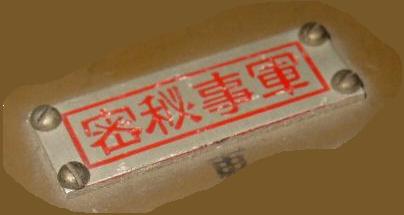

Note: This text is written right-to-left, which is very unusual for horizontally written Japanese.

軍事秘密 = military secret

甫 = possibly the end of
someone's name?

 軍事 [ぐんじ] (n,adj-no) military affairs, (P)
秘密 [ひみつ] (adj-na,n,adj-no) secret, secrecy, (P)
軍事秘密 [ぐんじひみつ] (n) military secret

The character resembling is an obsolete form of 密
秘 is also written in an obsolete form (second character in the image)

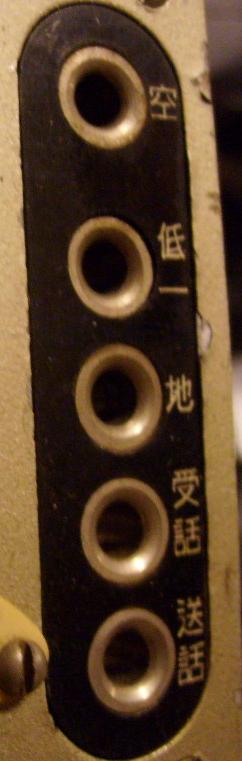

空 = empty? void?

低一 = low one? short one?

地 = earth

受話 = (phone) receiver
(lit. "receive talk")

送話 = mouthpiece
(lit. "send talk")

 空 [から] (n,adj-no) emptiness, vacuum, blank, (P)
空 [そら] (n) sky, the heavens, (P)

低い [ひくい] (adj-i) low (height, tone, rank, degree, cost, etc.), short, (P)
一 [いち] (num,pref) (1) one, (suf) (2) best in, the most (...) in (where an adjective follows), (P)

地 [ち] (n,n-suf) (1) earth, ground, land, soil, (2) place, (3) territory,
(4) bottom (of a package, book, etc.), (5) earth (one of the five elements), (P)

受話器 [じゅわき] (n) (telephone) receiver, (P)

送話器 [そうわき] (n) (telephone) transmitter, mouthpiece

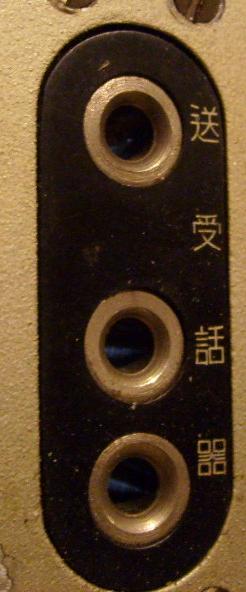

送受話器 = handset
(lit. send receive
talk device)

受話器 [じゅわき] (n) (telephone) receiver, (P)
送話器 [そうわき] (n) (telephone) transmitter, mouthpiece
送受 [そうじゅ] (n,vs) sending and receiving
送受話器 handset (my translation)

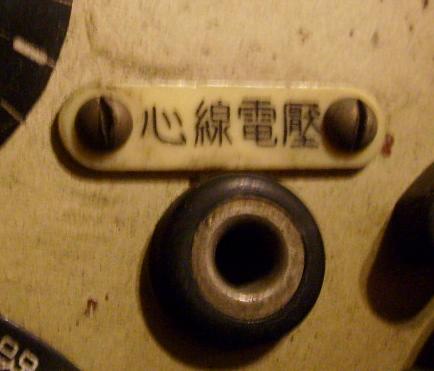

心線電壓 =
心線電圧 = line voltage

 心線 - the conducting wire inside an electric line, cord, cable, etc.
電圧 [でんあつ] (n) voltage, (P)
